Fiplex offers two different series of Transmitter Combiners : TC and THW Series, both in VHF and UHF.

TC Series uses ¼ wavelength high Q resonant cavities with INVAR control rods to ensure ling term thermal stability. This series allows 150 Khz minimum Tx to Tx separation. Broadband dual junction isolators are employed. Starting from 2 channels, TC series are easily expandable. Maximum input power is 100 W per port.

THW Series uses hybrid technology to provide Zero Spacing combining. Broadband dual junction isolators are employed. Available from 2 channel configurations. Maximum input power is 100 W per port.

In this same product line Fiplex offers Control Station Combiners in VHF, UHF and 700/800 Mhz bands. These are  broadband devices intended to combine several single antenna port radios in a single Tx and single Rx antennas.

Fiplex products allow the reduction of the infrastructure size, simplifies cabling installations, provides radio to radio isolation and reduces maintenance costs.

TC and THW Series VHF Transmitter Combiners

Cavity and Hybrid 136-174 Mhz

Models: THW15-xB1, TC15-xB1N

TC and THW Series UHF Transmitter Combiners

Cavity and Hybrid 380-512 Mhz

Models: TC38-xB1N, TC45-xB1N, THW45-xB1

THWS15 Series VHF Control Station Combiners

136-174 Mhz

Model: THWS15

THWS38 Series UHF Control Station Combiners

380-430 Mhz

Models: THWS38-4B0-1, THWS38-8B0-1

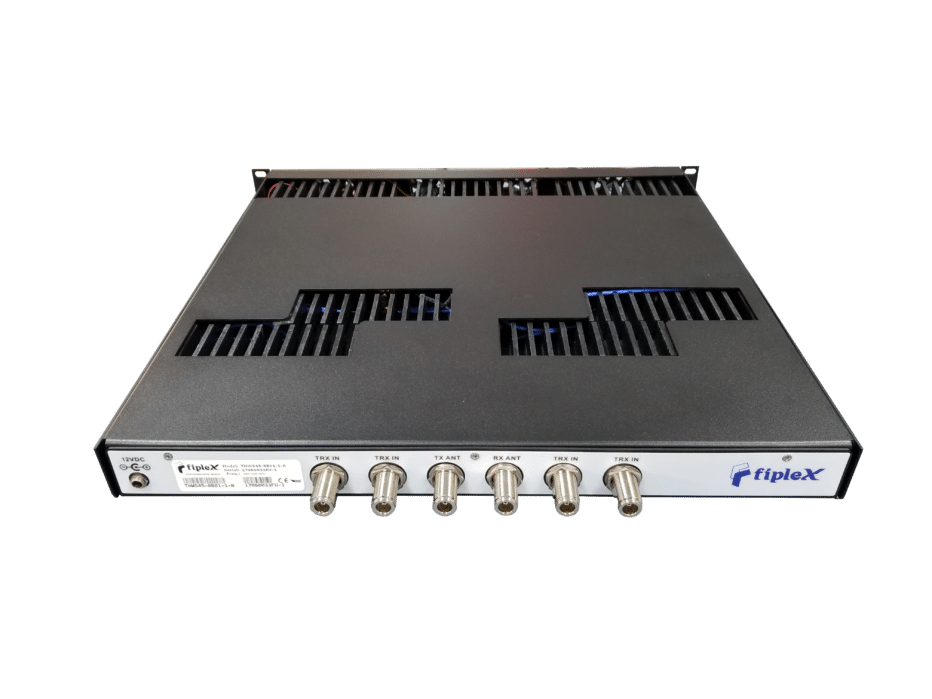

THWS45 Series UHF Control Station Combiners

450-512 Mhz

Models: THWS45-4B0-1, THWS45-8B0-1

THWS Series 700-800 Control Station Combiners

Models: THWS80-4B0-1, THWS80-6B0-1, THWS80-8B0-1, THWS80-16B0-1
